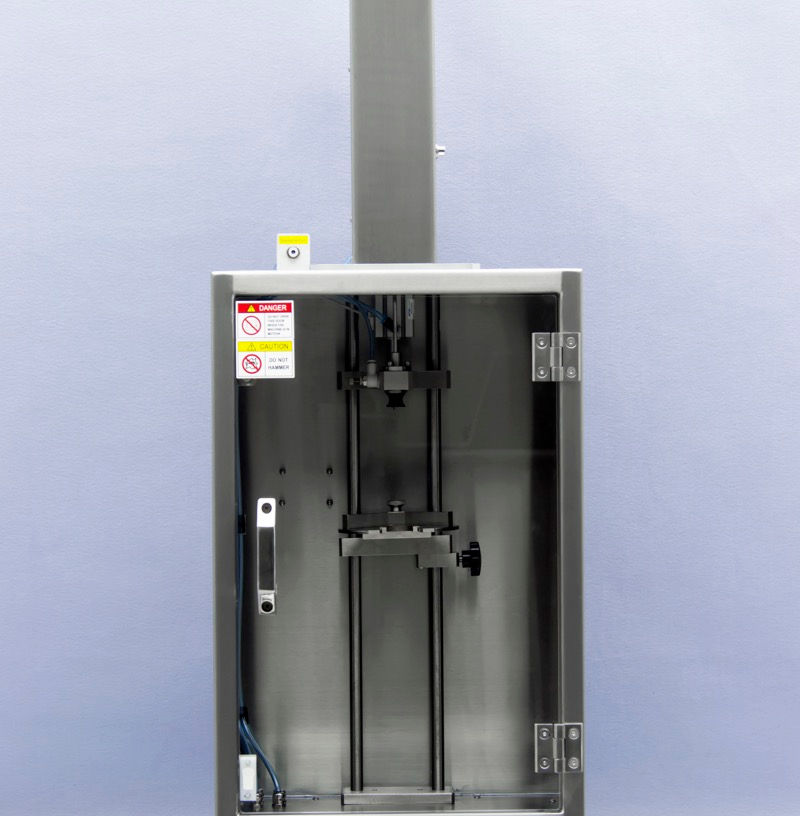

ABSD-1

Automatic sampling device

Technical characteristics :

· Size: 368 x 428 x 1168 mm

· Measuring range: 80 to 400 mm in height

from ø 45 to ø 125 mm in diameter

· Connection: ø 8 mm for air connection

ø 4 mm for the sampling pipe

· Air inlet: 5 - 8 bar

· Weight: 25 kg

Options:

Use :

Description :

In the beer and soft drink industries, reproducible and appropriate samples from bottles and cans are required for various quality control processes. The AT2E "ABSD-1 Automated Beverage Sampling Device" is designed to be the smart, easy and safe device.

With the ABSD-1, the operator can have an automated sampling process. For example: the operator will first adjust the insertion depth of the sampling pipe, then install the sample, close the door and press the button on the touch screen. Subsequently, the drilling and sampling process will be done automatically and the sample will be forced out into the sample line for CO2, O2 outgoing and other analysis and testing.
