CO²DA

Semi-automatic CO² calculator

Technical characteristics :

· Measuring range:

- CO2: 0.00 to 9.99 g/l

- Temperature: 0 to 60°C

- Pressure: 0 to 6 bar

· Precision:

- CO2: ±0.01 g/l

- Temperature: ±0.2 °C

- Pressure: ±0.02 bar

· Resolution:

- Temperature: 0.1 °C

- Pressure: 0.01 bar

· Sample range:

- Maximum diameter: 120 mm

- Maximum height: 380mm

· Units:

- CO2: g/L, Vol, %bw, P20[kg/cm2]

- Pressure: bar, psi

- Temperature: °C, °F

· Power supply: AC 220V / 50Hz

Dimensions: 730(L) x 450(W) x 460(H) mm

· Weight: 52Kg

Options:

Use :

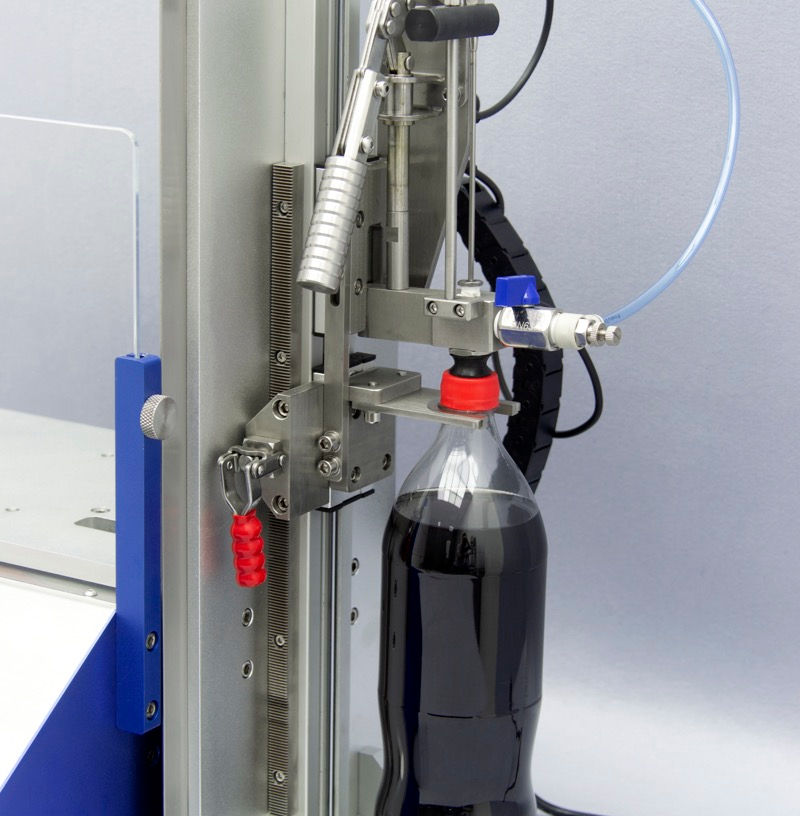

· Place the sample on the vertical platform

· Pierce the sample (capsule) using the lever, lower the temperature probe

· Press cycle start on the touch screen

· During stirring, the pressure and temperature evolve until the end of the test and obtaining the CO² measurement

Description :

The CO2DA – semi-automatic CO2 calculator is equipment specially designed for calculating the CO² contained in drinks packaged in glass bottles, PET and cans. The setup is semi-automatic and the test procedure is automated, which guarantees a precise and 100% reproducible calculation. The installation is very simple and accessible to everyone.
