PBBT-ECO

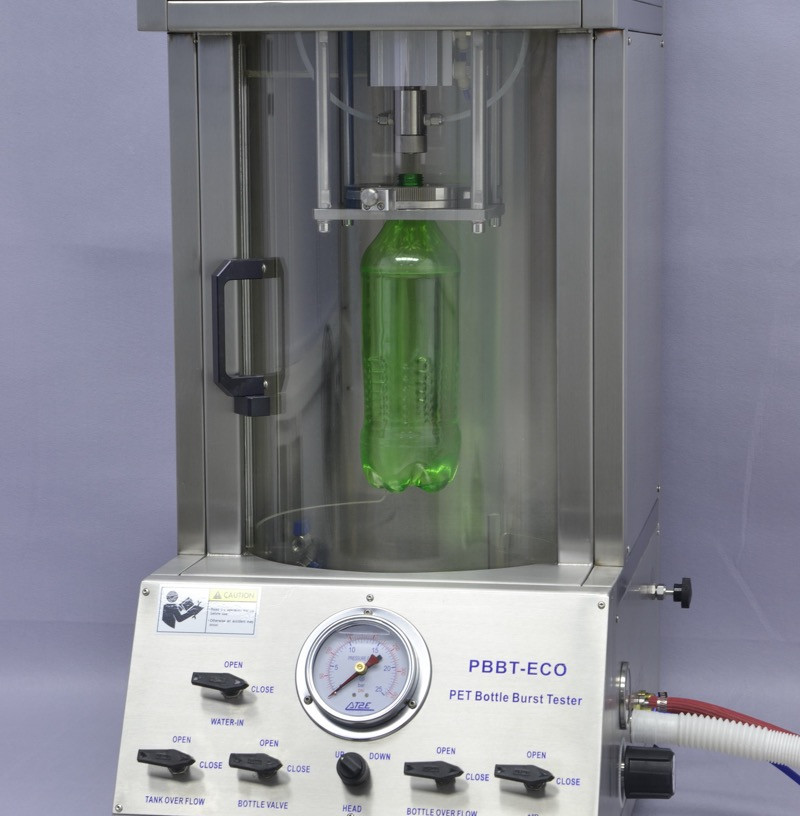

Device for testing the resistance to expansion and explosion of pet bottles

Technical characteristics :

• Measuring range: 0 - 20 bar (30 poss)
• Resolution: 0.2 bar
• Max. sample capacity: 3 L

• Maximum expansion: + 2 L
• Power supply: without

• Required pressures: water 3b / air 6-20b

• Temperature: 0 to 50 C°
• Dimensions: 725x512x925mm (L x D x H)
• Weight: 60 kg

Options:

Use :

Description :

For PET bottles – Simulates filling in a filler

PBBT-ECO Burst Tester is specialized testing equipment for testing PET bottles or cans. It has been designed in accordance with the three international commonly used test methods, users can apply using filling valves and pressurizing test method according to their requirement. The PBBT-ECO is capable of testing the resistance capabilities under a certain pressure or the rupture test.

Through reproduction of pressurization, increases until reaching the set point or burst point.

Simplified analog pressure display.
