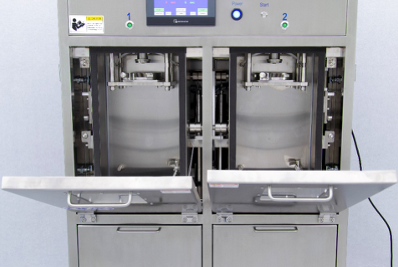

• Dual station design with independent controls; both stations can operate simultaneously or separately, providing increased efficiency and convenience for continuous testing, as well as greater flexibility.

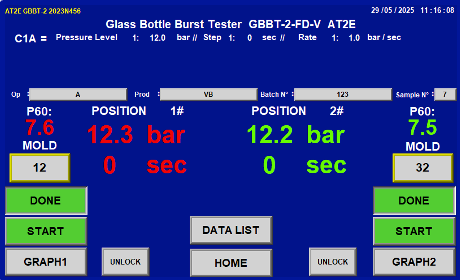

• Integrated programmable logic controller (PLC) and touchscreen control

• Customizable test cycles (up to 4 pressure and dwell time steps) to meet various testing needs

• Smart door design (GBBT-2-FD-V): automatically opens once the test cycle is complete

• Automatic sealing and filling system

• Easy to use thanks to predefined settings

• Easy sample installation

• Various mandrel options to accommodate different types of samples

• Linear pressure rise

• Storage for up to 10 operators and 30 products

• Storage of up to 1000 sets of test data, with data transfer capability

• Custom definition of the product batch number and sequence number

• Real-time visualization of the test curve

• Stainless steel structure ensuring the durability of the device

• Advanced safety door design ensuring operator protection during testing

• Overload protection

• Fragment collection tray specially designed to facilitate handling (20-litre capacity per tray)

• RS232 output

• Measuring range: 0-60 bar (per station)

• Air supply: 6 - 8 bar

• Resolution: 0.1 bar (1 psi / 0.1 kg/cm²)

• Water supply: Mains water, ≥1.5 bar

• Accuracy: ±1% of full scale (FS)

• Sample range: Available on request

• Power supply: 220 V AC (110 V AC optional)

• Dimensions: 970 (L) x 580 (W) x 1710 (H) mm

• Net weight: 270 kg
