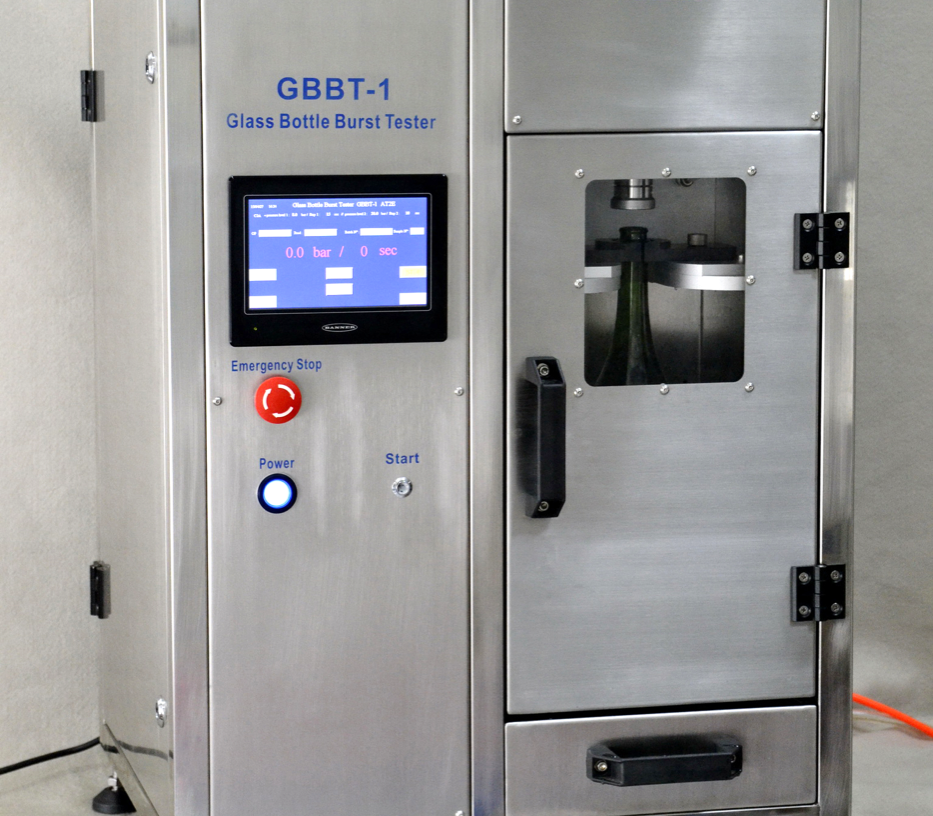

GBBT-1

Glass bottle explosion tester

Technical characteristics :

  • Touch screen with PLC

  • Predefined cycles (4 climbs, 4 stops)

  • Automatic bottle lock

  • Easy to use

  • Installation and automatic filling

  • Linear pressurization

  • Memorization of 10 operators and 30 products, batch numbers, thresholds, etc.

  • Product memorization (volume, name)

  • INOX manufacturing

  • Visualization of the curve and measurement in real time.

  • Recovery drawer

  • RS 232 C output

  • Connection to a printer or QPV1 software

· Measuring range

: 0-57bar

· Resolution

: 0.1 bar

· Power

: 115V / 230V, 50-60Hz

Dimensions

: L 620 x W 570 x H 820mm

· Weight

: 70 kg

Options:

Use :

Description :

The GBBT is an instrument for testing pressure resistance in glass containers.

Designed for ease of operation and maintenance, and fully complies with testing requirements according to international standards. ISO 7458:2004.

Pressure testing of containers is done up to a predefined pressure point (proof test) or until destruction.
