SSA-PLUS
Analyseur de fuite sécurisé
Technical characteristics :
· Measuring range: 0 to 16.00 bar
· Test pressure accuracy: ±0.5% FS
· Pressure measuring range: 0 to 16.00 bar (optional)
· Pressure accuracy: ±0.5% FS
· Units: bar / psi
· Resolution: 0.01 bar (0.1 psi)
· Tests on bottles, cans and preforms
· Neck piercing unit
· Sample range: 350 mm in height and 120 mm in diameter
· Touch screen display
· Secure stainless steel device: Explosion resistant
· Up to 12 levels of pressure, pressurization rate and holding time adjustment
· Examination of the test curve
· Memorization of 30 products
· Memorization of 10 operators
· Storage of up to 1000 test results
· Configuration by administrative passwords
· Dynamic display: Real-time pressure / Pressure holding time / time / date
· Display: product name / operator / batch number / sample number
Maximum pressure protection setting
· 0-16 bar pressure source for testing
· RS232 output (used to connect to software)
· Overall dimensions: 630(L) x 600(W) x 1050(H) mm
· Net weight: 85 kg
Description :
The SSA-PLUS is an advanced secure-seal leak analyser for testing capping performance. It offers an optimal design with easy operation and maintenance. Because it pierces the neck, no action is needed at the cap, which removes operator-induced variability and improves reading reliability; even micro-leaks are detected accurately. A single button runs the whole cycle — piercing, process control and leak detection. Pressure, pressurisation rate and holding time are adjustable in up to 12 steps to meet the testing requirements and standards of different products.
Options:
Can assembly (design subject to can type and can type quantity)
· “QUALIPRESS” software
· Integrated interior pressure measurement model

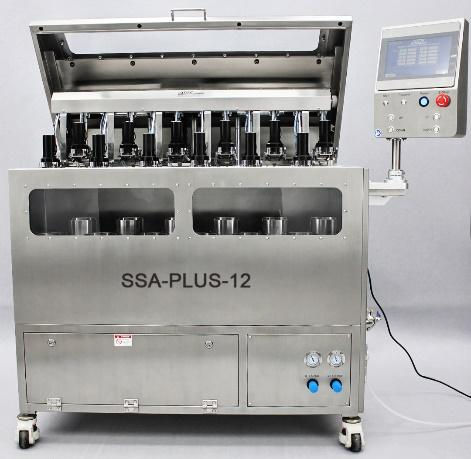

· Multi-position model
· Booster
Use :
FAQ
What is the primary function of the SSA PLUS leak tester?
The SSA PLUS performs fully automatic leak detection on capped bottles, cans, and preforms using a patented neck-piercing needle, covering 0 to 16.00 bar with no manual operation required on the cap area.
How does the SSA PLUS detect micro-leaks?
The SSA PLUS improves leak detection by piercing the neck instead of the cap, avoiding measurement interference from cap handling; running adjustable pressurization rate, pressure level, and hold time across up to 12 programmable steps; and capturing real-time test curves for review after each cycle.
What sample sizes and traceability features does the SSA PLUS support?
The SSA PLUS tests samples up to 120 mm diameter and 350 mm height, storing 30 products, 10 operators, and up to 1000 test results, with RS232 output to the QUALIPRESS software.
